Name |
Hot Sale Textile Tensile Strength Testing Machine Price, Tensile Strength Tester |
|
Max load |
1KN,2KN,5KN, 10KN, 20KN,50KN,100KN,200KN,3000KN |
|
Accurate grade |
1 % /0.5 % |
|
Effective measuring range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
|
Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
|
Tester resolution |
Max load 1/200000, regardless of inside and outside, constant the resolution |
|
Load sensor |
Basic configuration:sensor(max load): one Extended configuration: can add more sensors |
|
Effective testing width |
390mm(can be widened according to customer’s requirement ) |
|
Effective Tensile stroke |
800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
|
Range of testing speed |
0.001~200mm/min ; 500mm/min (1000mm/min is option) |
|
Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
|
Deformation of measured system(according to the requirements) |
Min span :10mm, Max range of deformation :800mm Extended deformation :Min span: 25mm,50mm,100mm, range of deformation :5mm,10mm,25mm |
What is Description Of Tensile Strength Tester?

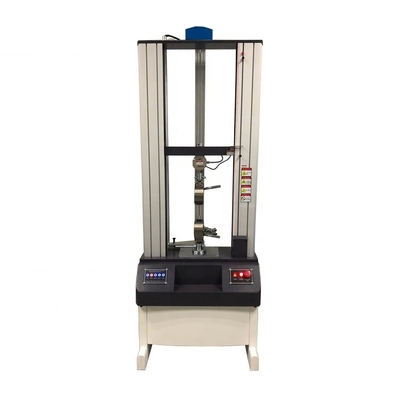

Hot Sale Textile Tensile Strength Testing Machine Price, Tensile Strength Tester is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2ton.
What Are Functions Of Tensile Strength Tester?
Hot Sale Textile Tensile Strength Testing Machine Price, Tensile Strength Tester is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
What Are Features Of Tensile Strength Tester?
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
What Is Standard Of Tensile Strength Tester?
<GB/T16491-1996 electronic universal testing machine>
What Is Application Of Tensile Strength Tester?
Hot Sale Textile Tensile Strength Testing Machine Price, Tensile Strength Tester is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Machine Sizes
Clamps Can be selected or designed
Click here request for more picture of grips!!!
Multi-function software
What Is The Accessories Of Tensile Tester?
Semi-finished tensile testing machine in stock
How To Maintance Machine During Use?
1.Clean--Wipe the machine with cotton cloth before and after each use,keep the machine clean.
2.Rust Protection--Spray anti-rust oil once a week on the steel surface of the machine.
3.Lubricating Oil--Add lubricating oil to machine drive parts(such as screw rod) regularly every month.
4.Check Screw Rod--Check weather the screw rod is worn every 6 months,if it is adjusted or replaced depending on the situation.
5.Reduction Gears--Check the gear oil of reducer every year weather needs to be added or replaced.
CLICK HERR FOR INQUIRY!
*Shippment
-By sea
-By plane
-By couriers, TNT, DHL, FEDEX, UPS, etc.
*Standard Export carton
1.Inner Package: Thin plastic film surround the machine;
2.Outer Package: Internationally standard package export safety wooden case.
Q1: How long is the delivery time?
A: 5 working days after we received your deposit or order confirmed.
Q2: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q3: What is the payment terms?
A: T/T, L/C, Western Union, etc
Q4: How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc
Q5: Is it OK to print my logo on machine product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
or 100% L/C at sight .
Q7: Can we test sample before place order?
A: Of course,we can test sample and provide test report to you with free.
