Pneumatic Hotels Polyurethane Spray Foam Injection Machine Equipment Fd-411b

1 unit
MOQ
Pneumatic Hotels Polyurethane Spray Foam Injection Machine Equipment Fd-411b
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Processing Type: Foaming Machine
Machine Type: PU foam
Voltage: 230V 1-phase 230V 3-phase / 400V 3-phase
Dimension(L*W*H): 110*87*136cm
Power (kW): 10
Weight (KG): 250 KG
Warranty: 2 years
Key Selling Points: Energy saving
Showroom Location: United States
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Marketing Type: New Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine
証明: ce
After-sales Service Provided: Video technical support
基本情報
証明: ce
お支払配送条件
Packaging Details: in wooden case
Supply Ability: 100 Set/Sets per Month
製品の説明
Product Overview

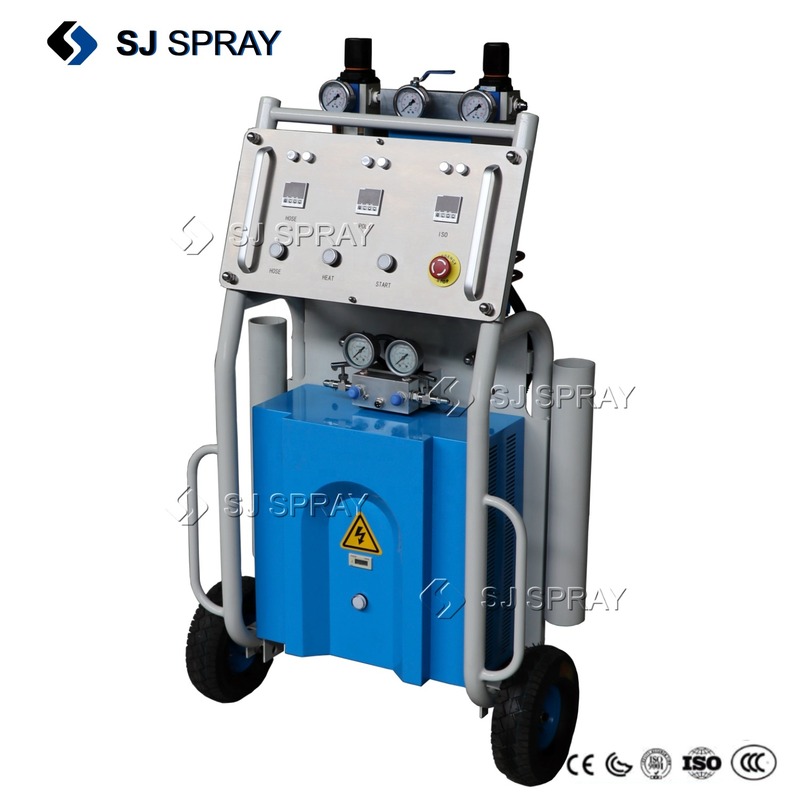

Pneumatic polyurethane spray machine FD-411B

High-end original independent design for more than 15 years, imported originals refused to low-end, product quality is stable, the leader of polyurethane spraying machine.
The FD-411B pneumatic driven proportioning unit is of advanced and compact design.It is specially aimed at the applications of polyurethane foam in place.Its particular configuration facilities easy access to all its components, simplifies the control functions and significantly reduces the maintenance work.
FEATURES AT A GLANCE
Polyurethane spray machine

1、Power:Pneumitic
2、Color:Customized
3、Gun Type:Spray/Injecting
4、Whole Power: 11000W
5、Max output:15kg/min

Left elevation
Front elevation
Right elevation
PRODUCT SPECIFICATIONS

Heating System
The heating system consists of two separate independent block heaters,Independent rapid heating to target temperature.
Proportioning Pumps
The system is including two positive displacement piston pumps, driven by a pneumatic motor.
Hose Heating System
The hose heating system is designed with 1000W each 15 meters that allows the heating of up to 90m.
Recirculation System
Recirculation of the two components allows a faster achievement of preset temperatures at the heaters before starting to spray and during temporary shutdowns.
FD-411B
1.Enlarge the cylinder for more uniform spraying and mixing.

2.Electronic components and seals are all imported brands, which are stable and not easy to break after long-term use.Refuse to
reduce low-end distribution, only make high-end products.

3.The heated hoses has voltage protection to ensure the safety of electricity use.

4.Spray gun, heated hose can be used with G/R/A/C/O.

5.Maintains temperature setpoints for better yield.
6.Maintains consistent output pressure for uniform spray pattern.

7.Ease of Use,Easy to operate and maintain.

8.Resettable counter tracks material usage.

9.Three independent heat zones - ISO, resin and hose heat.

10.Digital temperature controls,Provide accurate heat control for reliable spraying to handle different chemical viscosities.
No
Item
Data
1
Data ratio of raw materials
1: 1 (fixed)
2
Raw material viscosity range
200-1000CPS (at working temperature)
3
Max working pressure
17MPa (170 bar)
4
Maximum output
2~15 kg / min (13.2~22.0 lb / min)
5
Voltage
110V/220V 1-phase
220V 3-phase / 400V 3-phase
6
Machine size
870mm * 700mm * 1150mm
7
Net weight
180kgs
8
Gross weight
200kgs
9
Max heating hose length
90 meters(295.2feet)
PRODUCT CONFIGURATION
Two unit transfer pump
One unit spray gun
15 meters heated hose
